Network Architecture
Understand the fundamentals of network architecture, its types, components, and design principles to build secure, scalable, and high-performance networks.. Network architecture defines how computers, devices, and services are structured to communicate with each other. It’s the backbone of any IT infrastructure, influencing performance, security, scalability, and reliability.This chapter provides a comprehensive view of the components, models, and design principles behind modern network architecture. Whether building a home network or designing an enterprise-grade solution, the principles remain rooted in efficiency, security, and connectivity.
What is Network Architecture?
Network architecture refers to the design and structure of a computer network. It outlines how devices and services interact, how data is routed, and how users connect and communicate.
It includes:
Hardware components: routers, switches, firewalls, servers.
Transmission media: cables, fiber optics, wireless.
Protocols: rules for communication (e.g., TCP/IP, HTTP, FTP).
Topology: the physical and logical layout (e.g., star, mesh, ring).
Software: network operating systems, monitoring tools.

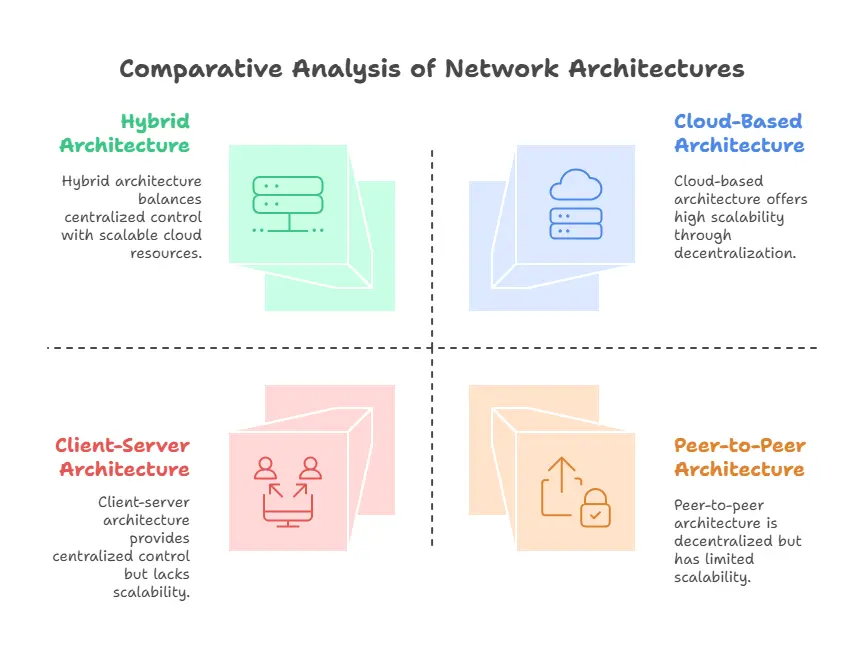

Analysis of Network Architecture
A. Client-Server Architecture
Structure: Clients (e.g., laptops) request services from centralized servers (e.g., web or database servers).
Use case: Common in corporate environments.
Advantages: Centralized control, easier maintenance.
Disadvantages: Single point of failure.
B. Peer-to-Peer (P2P) Architecture
Structure: Every device acts as both a client and a server.
Use case: File-sharing networks, blockchain.
Advantages: Scalable, decentralized.
Disadvantages: Harder to manage security.
C. Cloud-Based Architecture
Infrastructure is hosted remotely on cloud platforms like AWS, Azure, or GCP.
Enables elastic scaling, remote access, and global reach.
D. Hybrid Architecture
Combination of on-premise and cloud infrastructure.
Offers flexibility, control, and scalability.
Network Topologies
A. Star Topology
All devices connect to a central hub or switch.
Simple and easy to troubleshoot.
B. Bus Topology
Single central cable connects all devices.
Rare today but historically significant.
C. Ring Topology
Devices form a circle; data travels in one direction.
Used in certain token-based networks.
D. Mesh Topology
Every device is connected to every other device.
High redundancy, used in critical systems.
OSI vs. TCP/IP Model
Understanding these models helps conceptualize how data moves through a network.
A. OSI Model (7 layers):
Physical
Data Link
Network
Transport
Session
Presentation
Application
B. TCP/IP Model (4 layers):
Network Access
Internet
Transport
Application
Each layer handles a specific part of data transmission. Protocols like HTTP, TCP, IP, FTP, DNS, and SSL function within these layers.
Components of Network Architecture
Routers: Direct traffic between networks.
Switches: Manage traffic within a local network.
Firewalls: Secure the network from threats.
Load Balancers: Distribute traffic across servers.
Access Points: Provide wireless connectivity.
VPN Gateways: Ensure secure remote access.
Network Security in Architecture Design
A well-structured architecture embeds security into its foundation:
DMZs (Demilitarized Zones) for isolating public-facing services.
Firewalls and IDS/IPS for traffic filtering and threat detection.
Segmentation to isolate sensitive parts of the network.
Zero Trust Networks to limit internal trust and verify every access request.
End-to-End Encryption for data in motion.
Modern Trends in Network Architecture
Software-Defined Networking (SDN): Network control is decoupled from hardware.
Network Function Virtualization (NFV): Virtualizing network services for flexibility.
Edge Computing: Pushing processing closer to the data source.
5G Integration: Ultra-fast wireless communication architecture.
AI-Driven Monitoring: Predictive and automated fault detection.
Designing Scalable and Resilient Networks
To future-proof your architecture:
Design with redundancy to avoid single points of failure.
Implement QoS (Quality of Service) for critical applications.
Use monitoring and alerting systems (like Nagios, Zabbix).
Plan for capacity and performance growth.
Network architecture is more than cabling and IP addresses—it is the strategic design that enables an organization’s communication, collaboration, and cybersecurity posture. Whether planning a small office network or designing a global enterprise backbone, the architecture must be secure, scalable, and adaptable.A deep understanding of network architecture empowers IT professionals to build infrastructures that are efficient, secure, and resilient—preparing the organization for both today’s needs and tomorrow’s challenges.
