Centralized Workflow

The Centralized Workflow in Git emulates the workflow of traditional version control systems, where a central repository serves as the single source of truth. In this model, all team members directly pull from and push their changes to one shared repository. This workflow is typically used in smaller teams or environments where simplicity is key.

Introduction to Centralized Workflow

In the Centralized Workflow, all developers use a central repository on a shared server as the single place for all project files and updates. Unlike distributed workflows, the centralized approach resembles the structure of legacy version control systems, like SVN. In this workflow, each developer clones the central repository to their local environment, makes changes, and pushes updates back to the central repository.

How Centralized Workflow Works

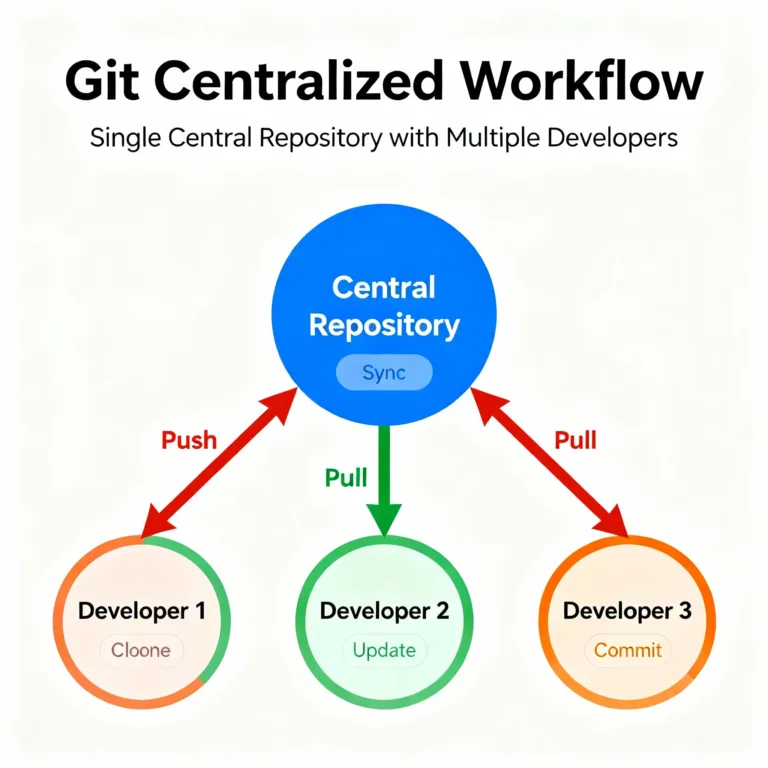

The Centralized Workflow revolves around a single shared repository, often referred to as the main repository. Here’s a basic flow of the process:

Clone the Main Repository: Every developer creates a local copy of the main repository.
Pull Latest Changes: Before starting work, developers pull the latest changes to ensure they’re working with the most recent version.
Make Changes and Commit: Developers make changes in their local repository and commit them to their local branch.
Push to the Main Repository: Finally, developers push their changes to the central repository, which updates the main project.

This workflow is straightforward, but it can encounter conflicts when multiple developers make changes to the same parts of the code.

Setting Up Centralized Workflow

To use the Centralized Workflow, you’ll need access to a shared Git repository on a platform like GitHub, GitLab, or an internal server. Here’s how to set it up.

Step 1: Initialize the Central Repository

Create a new repository on a Git hosting platform or server.
Initialize the repository by adding necessary project files.

Step 2: Clone the Central Repository

Each developer clones the central repository to their local environment:


					git clone https://github.com/org-name/project-name.git

Step 3: Confirm Remote Repository

Once cloned, the repository should have a remote named origin pointing to the central repository:


					git remote -v

Output:


					origin  https://github.com/org-name/project-name.git (fetch)
origin  https://github.com/org-name/project-name.git (push)

Collaborating with the Centralized Workflow

Each developer needs to follow a sequence to ensure consistency and avoid conflicts. Let’s break down each step with code examples and explanations.

Pulling Changes from the Central Repository

Before starting work, each developer should pull the latest updates from the central repository to ensure they have the most recent codebase.


					git pull origin main

Explanation: This command fetches and merges updates from the central repository’s main branch into the developer’s local branch.

Making Changes Locally

Developers can now work on features or bug fixes. For example, let’s assume a developer adds a new file.


					touch new-feature.txt
echo "This is a new feature" > new-feature.txt

Committing Changes

After making changes, developers need to commit these changes to their local repository.


					git add new-feature.txt
git commit -m "Add new feature file"

Explanation:
- git add: Stages the changes.
- git commit: Saves the changes to the local repository with a commit message.

Output of the Commit


					[main a1b2c3d] Add new feature file
 1 file changed, 1 insertion(+)
 create mode 100644 new-feature.txt

Pushing Changes to the Central Repository

Once committed, the changes are ready to be pushed to the central repository


					git push origin main

Explanation: git push origin main updates the central repository with local changes on the main branch.

Output of the Push Command


					Counting objects: 3, done.
Delta compression using up to 8 threads.
Compressing objects: 100% (2/2), done.
Writing objects: 100% (3/3), 285 bytes | 285.00 KiB/s, done.
Total 3 (delta 0), reused 0 (delta 0)
To https://github.com/org-name/project-name.git
   5f3c2a1..a1b2c3d  main -> main

Managing Conflicts in Centralized Workflow

In a centralized model, conflicts can arise when multiple team members edit the same file. Git notifies developers when there’s a conflict during a git pull or git merge.

Example: Resolving a Conflict

1. Attempt to Pull:


					git push origin main

2. Conflict Message:


					CONFLICT (content): Merge conflict in new-feature.txt
Automatic merge failed; fix conflicts and then commit the result.

3. Resolve Conflict: Open the conflicting file and edit as needed to resolve differences.

4. Mark Conflict as Resolved


					git add new-feature.txt
git commit -m "Resolve conflict in new-feature.txt"

5. Push Resolved Conflict


					git push origin main

Explanation: Conflict resolution requires modifying the conflicting file, staging it, committing the resolved conflict, and pushing the final version to the central repository.

Benefits and Drawbacks of Centralized Workflow

Benefits

Simplicity: Centralized Workflow is straightforward, making it accessible for teams new to Git.
Single Source of Truth: The central repository is the definitive location of the project, making it easy to track the latest code.
Ideal for Small Teams: Teams with fewer members and minimal parallel development benefit from the simplicity of this model.

Drawbacks

Risk of Conflicts: Multiple contributors working directly on the central repository can lead to frequent merge conflicts.
Reduced Flexibility: Unlike distributed workflows, the centralized approach limits the ability to work on multiple features or releases concurrently.
Scalability Issues: The Centralized Workflow becomes challenging with large teams and more complex projects.

The Centralized Workflow is a simple and effective approach for managing small projects or teams. It follows a familiar model of using a single central repository as the main source for all team members. Although it may lead to conflicts in larger teams, this workflow remains an excellent choice for smaller projects that prioritize simplicity over flexibility. Happy Coding!❤️
