Software Engineering Principles
Software Engineering principles serve as fundamental guidelines to ensure the development of high-quality, maintainable, and scalable software solutions. These principles are essential for writing clean, efficient, and reliable code in C, a powerful and widely-used programming language. Software Engineering principles encompass various concepts and best practices that aid in the design, development, and maintenance of software systems. In this chapter, we will delve into these principles and explore how they can be applied in the context of C programming.

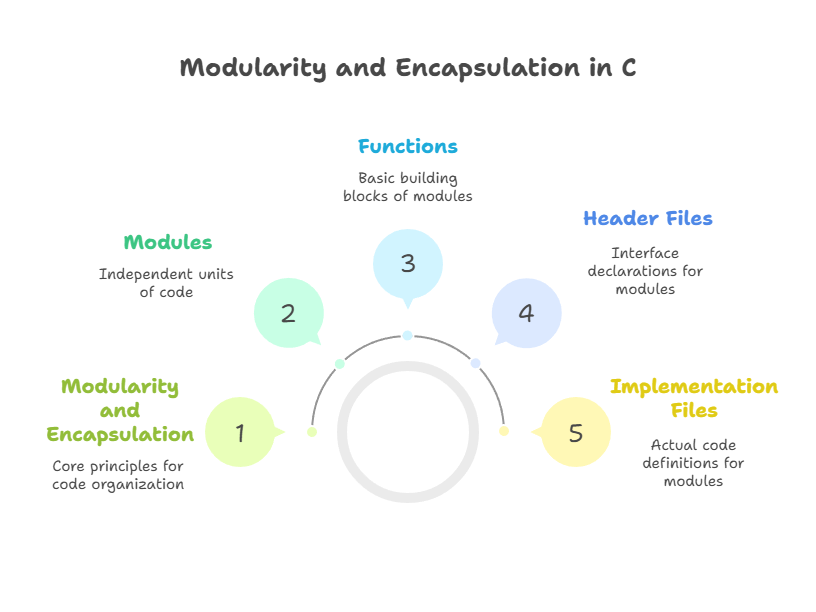

Modularity and Encapsulation
Modularity and encapsulation are fundamental principles in software engineering that promote code organization and reusability. Modularity involves breaking down a program into smaller, independent modules, while encapsulation hides the internal implementation details of these modules.
In C, modularity can be achieved through the use of functions and header files. Let’s consider an example:
// File: math_operations.h
#ifndef MATH_OPERATIONS_H
#define MATH_OPERATIONS_H
int add(int a, int b);
int subtract(int a, int b);
#endif
// File: math_operations.c
#include "math_operations.h"
int add(int a, int b) {
return a + b;
}
int subtract(int a, int b) {
return a - b;
}
In this example, we have encapsulated the mathematical operations (addition and subtraction) in separate functions within a module. The math_operations.h header file declares the function prototypes, while the math_operations.c file defines the implementations.
Now, let’s use these functions in our main program:
// File: main.c
#include <stdio.h>
#include "math_operations.h"
int main() {
int result_add = add(5, 3);
int result_subtract = subtract(10, 4);
printf("Addition: %d\n", result_add); // Output: Addition: 8
printf("Subtraction: %d\n", result_subtract); // Output: Subtraction: 6
return 0;
}
By encapsulating the mathematical operations in a module, we promote code reusability and maintainability. If we need to make changes to these operations, we only need to modify the respective module without affecting other parts of the program.
Abstraction and Data Hiding
Abstraction and data hiding are essential principles for managing complexity and ensuring the security and integrity of data within a software system. Abstraction involves defining simplified interfaces that hide the underlying implementation details, while data hiding restricts access to sensitive data.
In C, abstraction can be achieved through the use of abstract data types (ADTs) and function interfaces. Let’s illustrate this with an example of a stack ADT:
// File: stack.h
#ifndef STACK_H
#define STACK_H
#define MAX_SIZE 100
typedef struct {
int items[MAX_SIZE];
int top;
} Stack;
void initialize(Stack *stack);
void push(Stack *stack, int value);
int pop(Stack *stack);
int peek(Stack *stack);
int is_empty(Stack *stack);
int is_full(Stack *stack);
#endif
// File: stack.c
#include "stack.h"
void initialize(Stack *stack) {
stack->top = -1;
}
void push(Stack *stack, int value) {
if (!is_full(stack)) {
stack->items[++stack->top] = value;
}
}
int pop(Stack *stack) {
if (!is_empty(stack)) {
return stack->items[stack->top--];
}
return -1; // Stack underflow
}
int peek(Stack *stack) {
if (!is_empty(stack)) {
return stack->items[stack->top];
}
return -1; // Stack is empty
}
int is_empty(Stack *stack) {
return stack->top == -1;
}
int is_full(Stack *stack) {
return stack->top == MAX_SIZE - 1;
}
In this example, we define an abstract data type Stack along with its interface functions in the stack.h header file. The implementation details of these functions are hidden from the user.
Now, let’s use the stack ADT in our main program:
// File: main.c
#include <stdio.h>
#include "stack.h"
int main() {
Stack stack;
initialize(&stack);
push(&stack, 10);
push(&stack, 20);
push(&stack, 30);
printf("Top element: %d\n", peek(&stack)); // Output: Top element: 30
printf("Popped element: %d\n", pop(&stack)); // Output: Popped element: 30
printf("Popped element: %d\n", pop(&stack)); // Output: Popped element: 20
return 0;
}
By abstracting the stack operations and hiding the implementation details, we provide a clean and simplified interface for manipulating stacks while ensuring data integrity and security.
Separation of Concerns
Separation of concerns is a principle that advocates for dividing a software system into distinct sections, each responsible for a specific aspect of functionality. This separation enhances maintainability, scalability, and code readability.
In C, separation of concerns can be achieved through modular design and the use of header files to declare interfaces. Let’s consider an example of a simple file processing system:
// File: file_processor.h
#ifndef FILE_PROCESSOR_H
#define FILE_PROCESSOR_H
void process_file(const char *filename);
#endif
// File: file_processor.c
#include <stdio.h>
#include "file_processor.h"
void process_file(const char *filename) {
FILE *file = fopen(filename, "r");
if (file != NULL) {
// Process the file
fclose(file);
} else {
printf("Error: Unable to open file %s\n", filename);
}
}
In this example, we define a module for file processing with a function process_file declared in the file_processor.h header file. The implementation details of this function are encapsulated in the file_processor.c file.
Now, let’s use the file processing module in our main program:
// File: main.c
#include <stdio.h>
#include "file_processor.h"
int main() {
process_file("input.txt");
return 0;
}
By separating the file processing functionality into a distinct module, we promote code organization and maintainability. Changes to the file processing logic can be made independently without affecting other parts of the program.
Code Reusability and Maintainability
Code reusability and maintainability are key goals in software engineering that can be achieved through the adoption of design patterns, modular design, and clean coding practices. Reusable and maintainable code reduces development time, minimizes bugs, and facilitates collaboration among developers.
In C, code reusability and maintainability can be enhanced by following best practices such as modularization, abstraction, and encapsulation. Let’s revisit our previous examples to illustrate these principles:
- Modularization: Breaking down a program into smaller, independent modules promotes code reusability and maintainability.
- Abstraction: Defining simplified interfaces that hide implementation details allows for easier code maintenance and modification.
- Encapsulation: Hiding internal implementation details within modules prevents unintended access and manipulation of data.
By adhering to these principles and best practices, developers can write clean, efficient, and reliable C code that is easier to understand, maintain, and extend.
In this chapter, we explored various Software Engineering principles and their application in C programming. From modularity and encapsulation to abstraction and separation of concerns, these principles provide guidelines for writing high-quality and maintainable software systems.By embracing these principles and adopting best practices, developers can enhance the reliability, scalability, and maintainability of their C code. Whether it's designing modular systems, abstracting complex functionality, or separating concerns, Software Engineering principles play a crucial role in shaping the development process and ensuring the success of software projects. Happy coding !❤️
